Name: BAJA DESIGNS | Squadron Sport Black LED Auxiliary Light Pod Universal
SKU: 152341

Description

NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.Vehicle Lighting | Scene Lights

Upgrade your light package with the Squadron Sport LED light from Baja Designs. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron Sport is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 3,162 lumens at 30 watts. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. USPTO Reg No. 5,766,659

ELS™ Scores:
Click to learn more about our

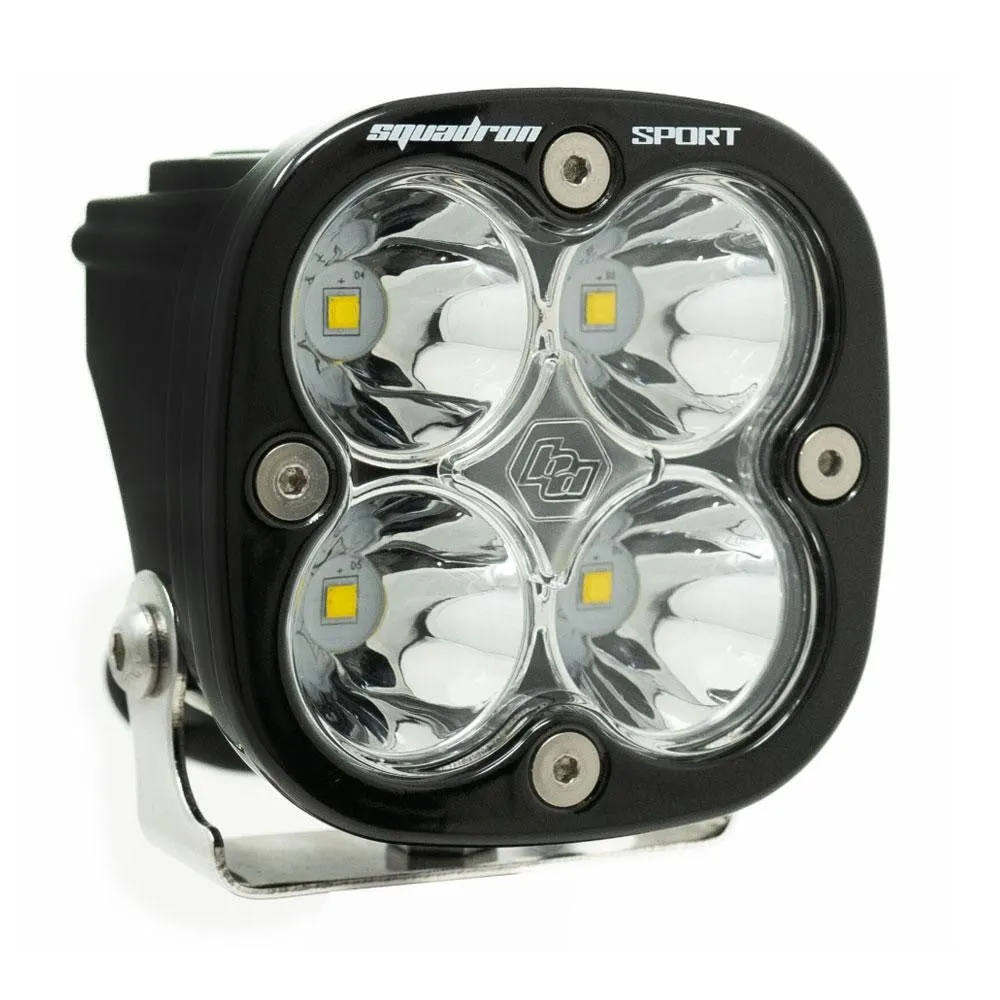

Squadron Sport Spot Clear: ELS 112⁰/ 5.3/ 229'/ 1973

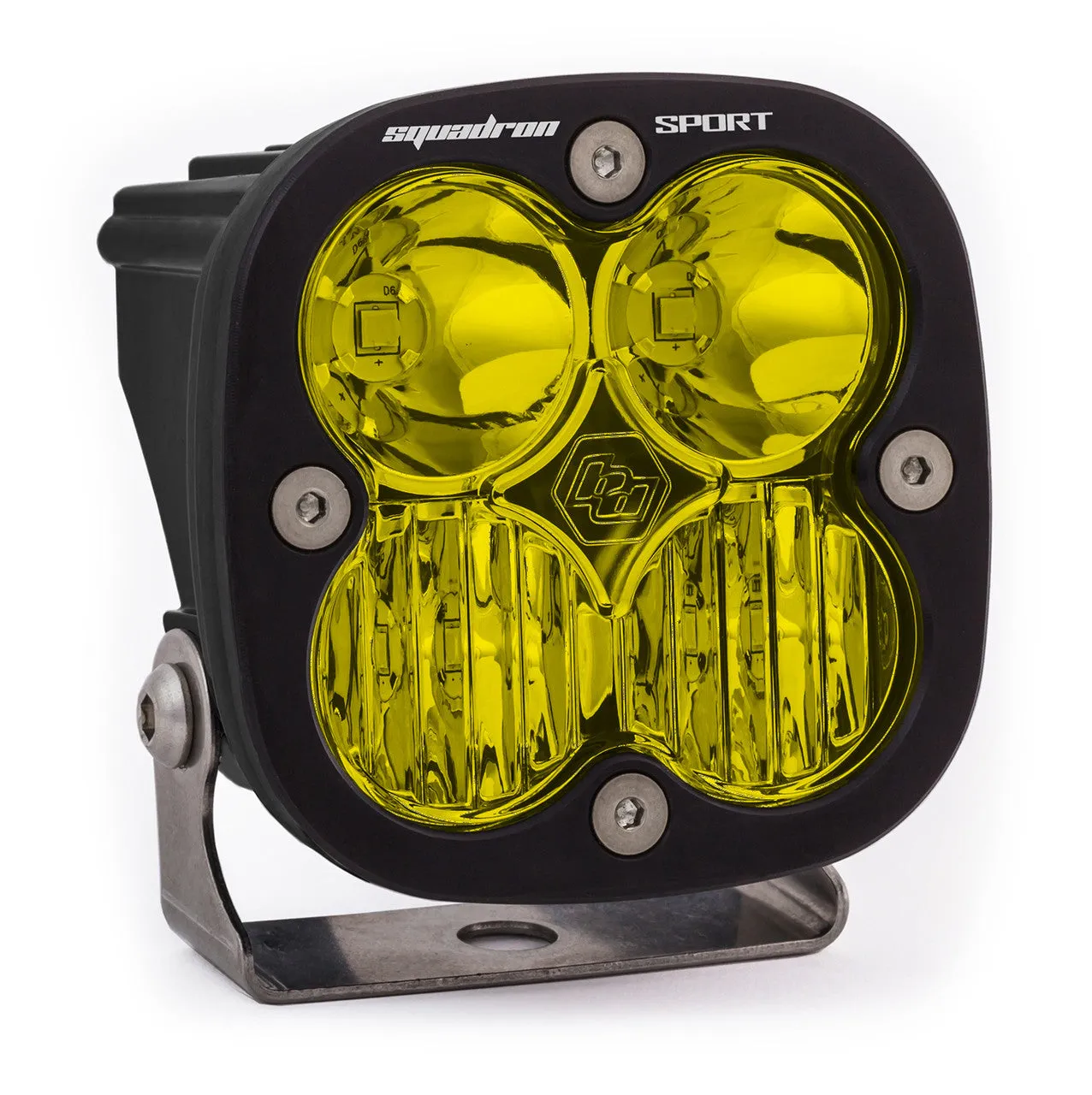

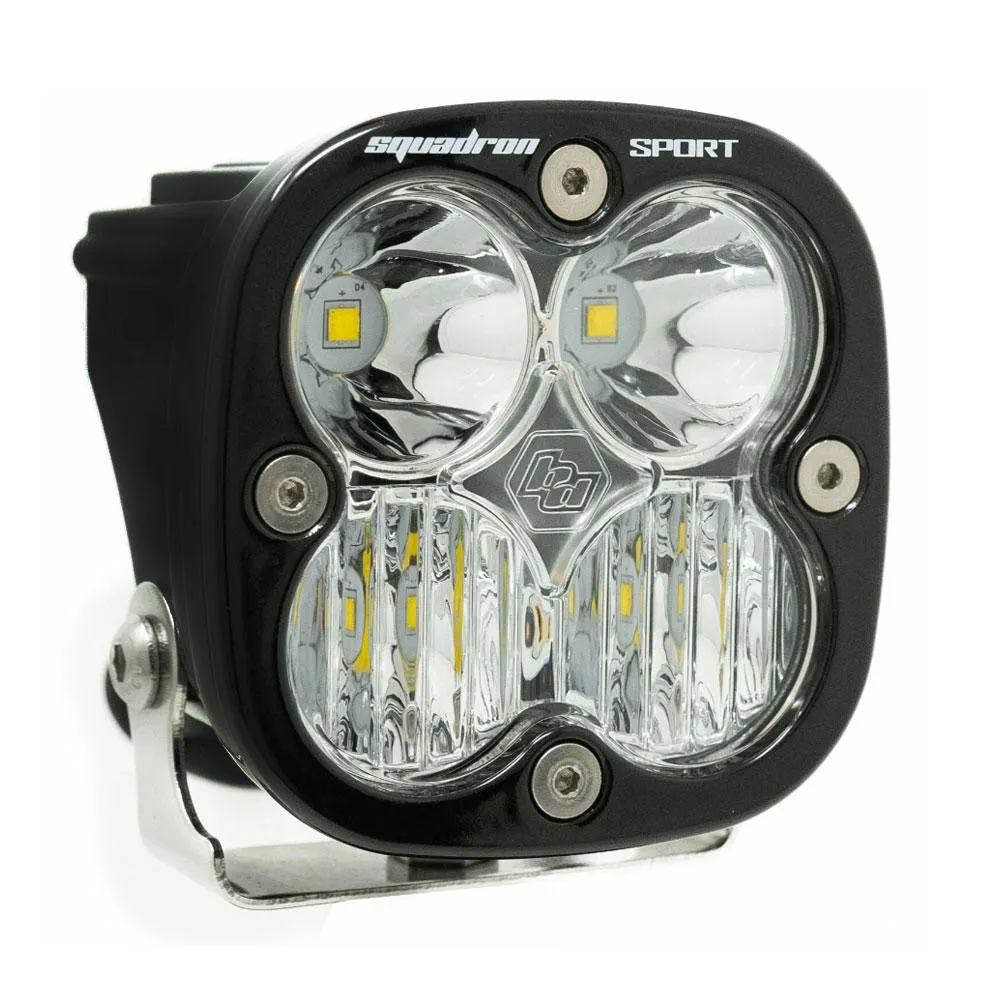

Squadron Sport Driving Combo Clear: ELS 112⁰/ 7.1 / 183'/ 2441

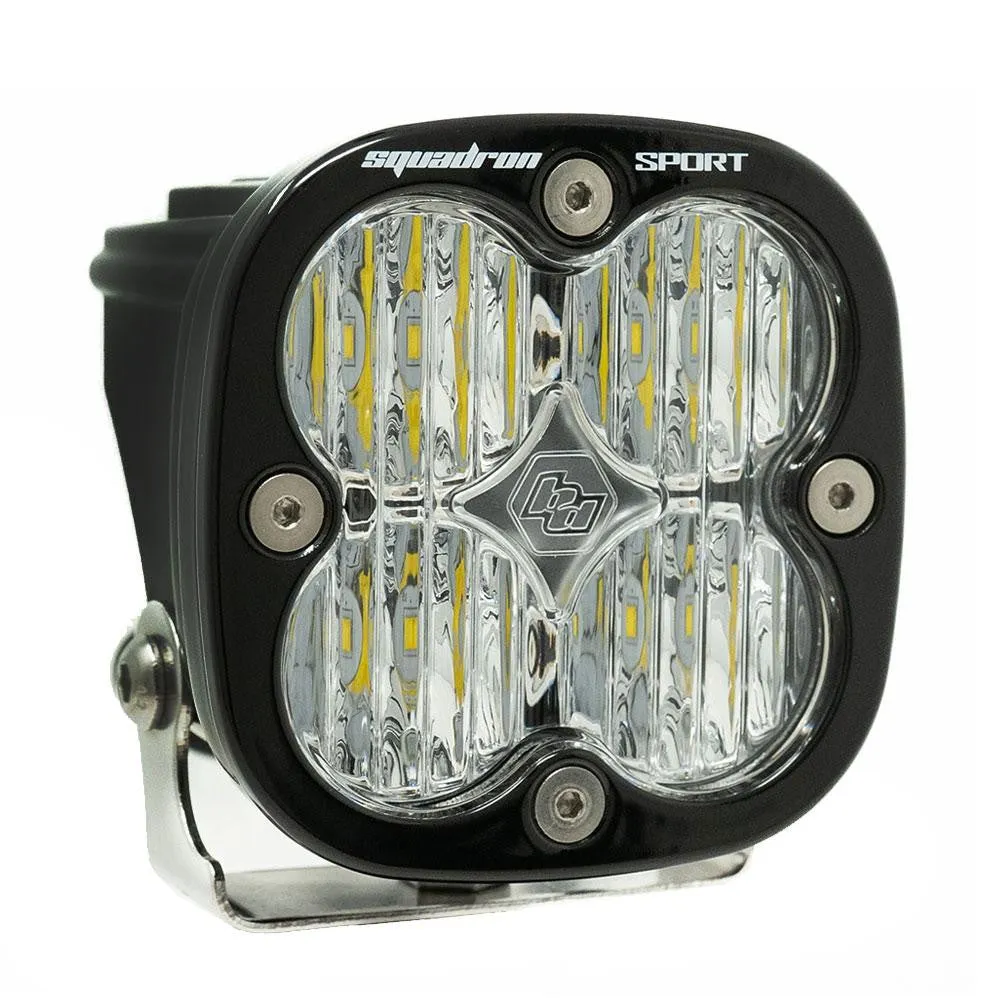

Squadron Sport Wide Cornering Clear: ELS 124⁰/ 6.7/ 114'/ 2506

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Safely Driving LEDs at 100%

5000K Daylight – Less Driver Fatigue, Natural Color

Dimensions

Depth (in.)	2.770
Height (in.)	3.070
Length (in.)	3.070
Weight (lbs.)	0.750

Specifications

Amperage Rating (A)	2.200
Average Rated Life (hr.)	49,930

Bezel Material	Billet Machined Aluminum
Brightness (Lumens)	3162

Housing Color	Black
Housing Material	Powder Coated Cast Aluminum

Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	Beam
Lighting Quantity	4
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	Squadron Sport LED Light Pod
Wattage (W)	30.360
Wiring Harness Included	No

Standards & Compliance

Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)

Installation instructions

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
